Functions and Features

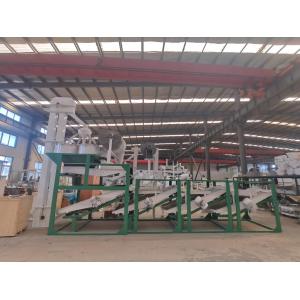

The sunflower seed shelling machine Model TFKH1500 is designed to de-hull seeds and separate shells from kernels. It applies multi-huller and wider screens to increase the processing capacity.

As a machine designed for producing high quality sun-seed kernels, the machine combined with raw material cleaner, kernels re-separators and re-circulating system for un-hulled seeds. Most of all, the de-huller’s impact force can be adjusted by an inverter, which enables it to process different sunflower varieties.

Process

Component

It consists of feed-in hopper, spiral elevator, seeds cleaner, bucket elevator, de-hullers, shells collector, in-shell seeds re-circulating system, re-separators for un-hulled seeds, and electric control cabinet.

Vertical type

What’s New

√ Faster huller designed: 8 ceramic impact part and more powerful motors.

√ Wider screens than normal TFKH1500.

√ Easier open cover of huller.

√ Elevator’s chute easily folded for maintenance of hullers.

√ Two years guarantee!

Main Parameters

Power:15.43KW(380V)

Capacity:800-1000Kg/Hour

(Remarks: The capacity is for confection type seeds with moisture about 12%, size above 3.2mm square screen. For same condition of oil type seeds it can process about 600-800kg/h, variety determines.)

Whole kernel: 90% Min. (kernels that less than 1/2 whole kernels are broken)
De-hulling rate:95%-98%
Loss in the shells:≤0.3%

Occupied Area:11.3m×2.8mx5.8m(Vertical type) or 14.3m x 2.8m x 5.2m (Horizontal type)

Weight:6.0T

Horizontal type

We can design whole factory lines for your special requirement, 500-5000kg/hr.
